Refuse Collection Superstructure
Tisan Mini Pak

Refuse collection superstructure TİSAN MINI PAC is designed and manufactured for collection and transportation of domestic and bulky waste or recyclable materials. Emptying of the superstructure is achieved by tilting the body. Superstructure is equipped with a lifting device (120 – 1100 l)

TİSAN MINI PAC 6 m3 -13 m3
Body volume m3 : min 6 max 13
Theoretical payload kg : min 1300 max 3.500
Rec. chassis G.V.W. kg : min 5.000 max 9.000
Required power HP :min 100 max –330
Wheel base mm min 2.500 max 3.800


Tisan Eco Pack LDX 5/6/7/8

BODY CAPACITY 5- 7 - 8 m³
BODY LENGTH 4307 mm
BODY WIDTH 2000 mm
EQUIPMENT WEIGHT WITH CONTAINER LIFTER 2,200 – 2.350 kg

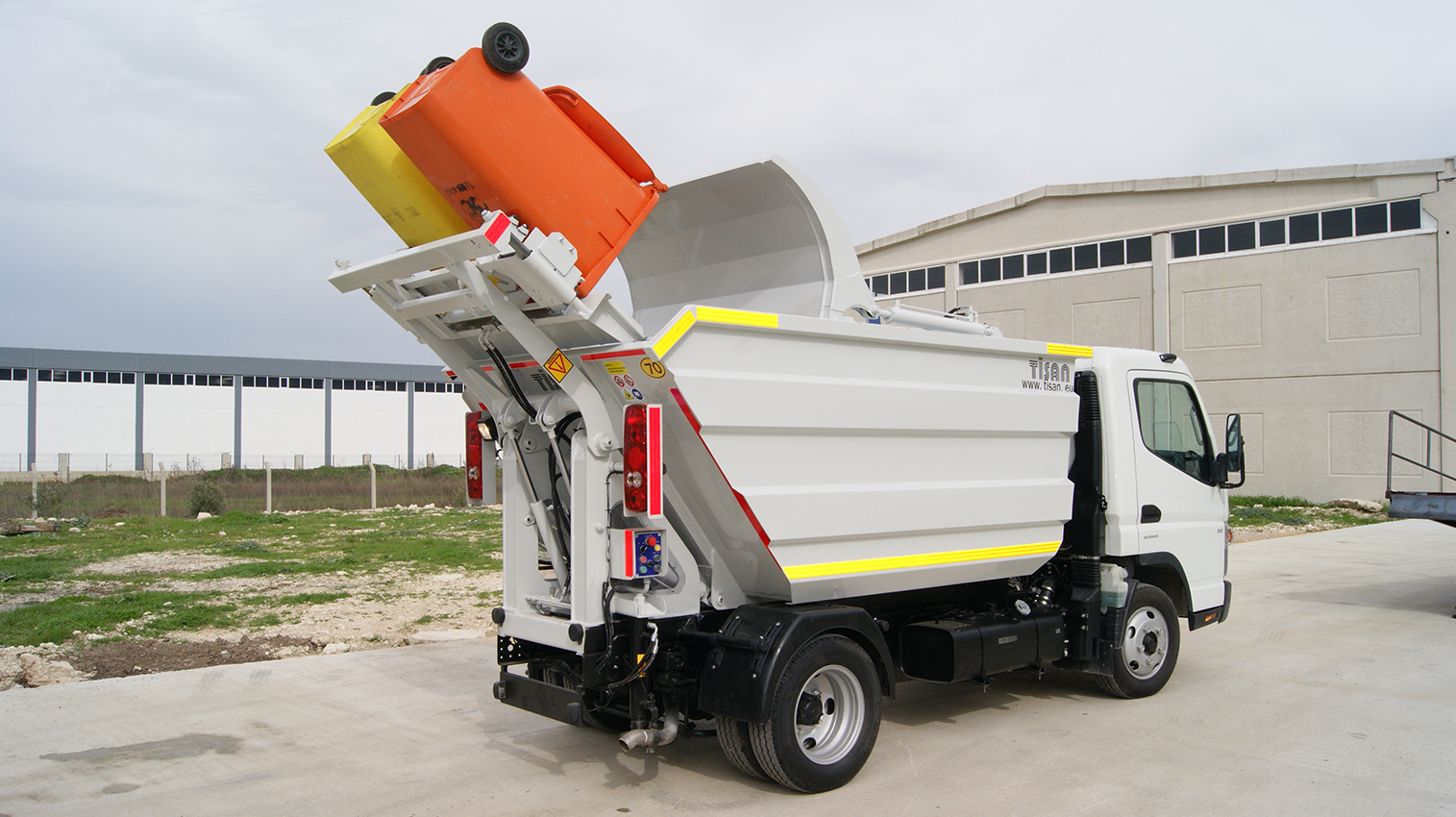

BIN LIFTER
Lifting all containers type from 120 to 1100 l


EQUIPMENT MODEL TİSAN mini ECO LDX 3 & 5 Refuse collecting superstructure

Refuse collection superstructure TİSAN is designed and manufactured for collection and transportation of domestic and bulky waste or recyclable materials. Superstructure TİSAN is designed to be mounted on the extremely narrow chassis with low G.V.W. since its width is only 1700 mm and its weight is 1100 kg. Emptying of the superstructure is achieved by tilting the body. Superstructure is equipped with a lifting device for emptying waste container with capacity of 80 up to 1100l.

Body volume m3 3 5
Bodywork mass kg 1.200 – 1.400 1.300 – 1.500
Total weight kg 2.600 – 3.500 2.800 – 4.200
T.P kg 800 – 2.000 1.000 – 2.500
Rec . chassis G.V.W. kg 3.500 – 5.500 5.000 – 7.500
Required power HP min 100 min 100
Wheel base mm 2.500 – .2.900 2.800 – 3.400
Wheel base* mm 3.300 – 3.600 3.500 – 4.100


TİSAN MİNİ PAK (M)

TİSAN MINI PAK (M) Body volume m3 : min 4 max 8
Width mm : min 1.800 max 2.450
Bodywork mas kg : min 2.000 max 3.000
Total weight kg : min 4.000 max 6.000
Theoretical payload kg : min 800 max 2.500
Rec. chassis G.V.W. kg : min 5.000 max 9.000
Required power HP :min 100 max –150
Wheel base mm min 2.500 max 3.800


TİSAN MINI GARBAGE TAXI (1.8 -2.5 m3)

BODY
Base at least 4 mm, side walls and ceiling 4 mm, printed aluminium fletton HYDRAULIC EQUIPMENT CD hydraulic unit 12 volts
STANDARD ACCESSORIES
In the night to collect garbage at the back of the projector,
Chauffeur warning whistle
Tire and dust tire
Turn signal light
